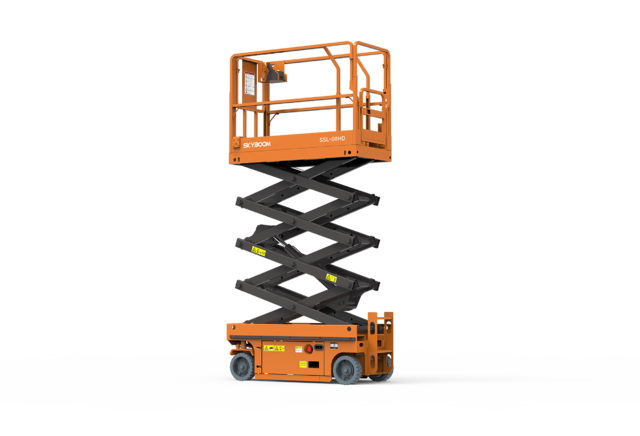

Scissors lift TD-08HD
Specification
●Lift Capacity：230KG
●Width-stowed：0.76m
●Working Height：8m
Features
●Be used by battery, front wheel driving and rear wheel braking, the front wheel can be steering
●Low noise ,standards environmental requirements
●Applicable for the flat condition, the whole machine is light and compact, it is more suitable for the narrow space
Performance
Working height maximum[A]
Platform height maximum[B]
Length-stowed[E]
Width-stowed[C]
Height-stowed-folding rails
Height-rails down（Fold）
Platform size(L×W)[H*I]
Slide- out platform extension deck[J]
Wheel base[F]
Ground clearance[G]
with pothole guards deployed[K]
Dimension
Lift capacity
Max platform occupancy (indoor/outdoor)
Drive speed-stowed
Drive speed-raised
Gradeability-stowed
Turning radius-inside
Turning radius-outside
Working slope maximum
Tyre
Power
Power source
Integrated charger
Weight
Standard
7.8m
5.8m
1.8m
0.78m
2.18m
1.85m
1.67m*0.74m
0.9m
1.35m
0.08m
0.02m
230kg
2 orang di dalam/1 orang diluar
3.5km/h
0.8km/h
25%
0
1.67m
1.5/3°
305×100mm
Batteries
4*6V/240Ah 24V/25A
1490kg
