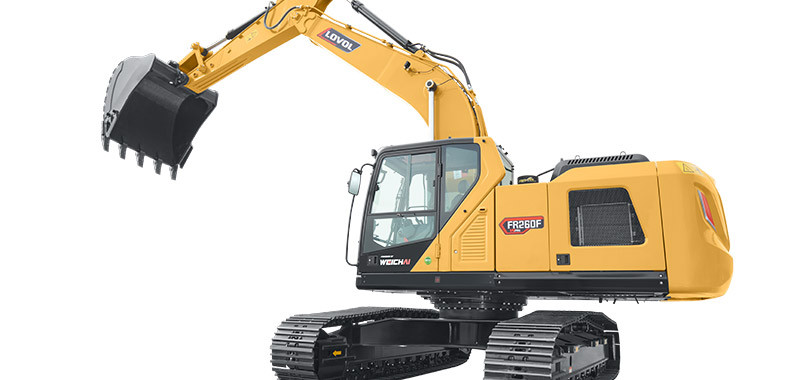

FR260F
Item | Unit | Parameter |
---|---|---|
Operating Weight | kg | 26000 |
Bucket Capacity | m³ | 1.5 |
Rated Power | kW | 160/2000 |
Emissions | - | Stage III |
Transportation Dimensions(L*W*H) | mm | 10040*3180*3322 |
Max.Digging Radius | mm | 10075 |
Max.Digging Height | mm | 10235 |
Max.Digging Depth | mm | 6645 |
Max.Unloading Height | mm | 7270 |
Bucket Digging Force | kN | 178 |
Stick Digging Force | kN | 128 |
Track Width | mm | 1471 |
Intelligent
Newly developed Lovol's intelligent operation system enables power system management, intelligent interaction, automatic recognition of working conditions, auxiliary operation, and personalized customization.
Efficient
Utilizing the W-LCOT adaptive control algorithm, the controller automatically identifies working condition types and dynamically adjusts power matching; Adopting Weichai Linde hydraulic powertrain technology with high-flow main valve and high-flow swing motor, large bucket, overall work efficiency improved by 10% compared to the E series, and fuel efficiency increased by more than 15%.
Reliable
WP7H engine + Linde hydraulic system, assembly supply, a 5-year 10,000-hour warranty for key parts; Large cross-section three-stage boom, forged axle seat, making the entire machine more reliable.
Easy Maintenance
Three-stage parallel integrated fuel system, easy maintenance; Integrated air filter, maintenance interval doubled.
